Will dismantle the old scanner Epson.
Remove the cover.
Her white part removed, underneath the device radiographic slides.
It consists of a fluorescent lamp in the power supply unit and diffuser.
The scanner itself.
Remove the top part of the case.
Here, the main board and the board with buttons, motor with gear and a mobile scanning element.
Motor unit.
Scanning element.
Let us scan element.
Board with a linear CCD array.
The system of mirrors.

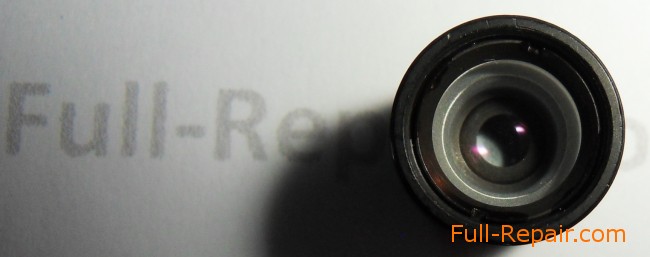

And here is the lens (Upper case letters «F» 6 mm).
To retrieve the object.
This is how the photographs taken through this lens.
This is a board with a sensor attaching the connector.
